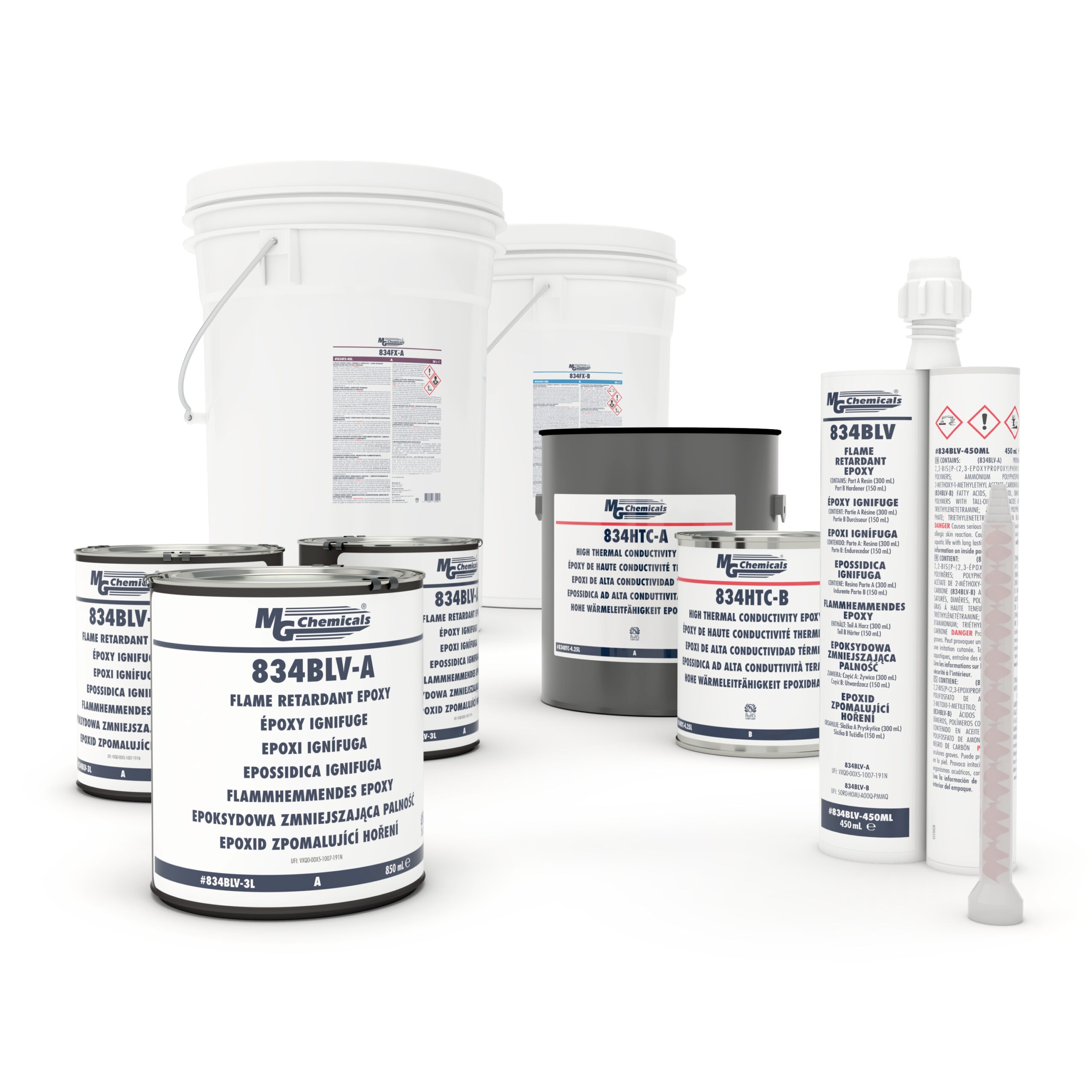

Flame Retardant Potting

The 834-series of epoxy potting compounds contain non-halogenated fillers and self-extinguish when exposed to open flames. These products have a flowable consistency and can withstand exposure to harsh environments. Our flame retardant potting compounds are available either as flexible compounds for aggressive thermal cycling or rigid plastics for added protection from shocks and impacts.

Features & Benefits

  • UL94 V-0 certified
  • Thermally conductive
  • Low exotherm
  • Available in rigid and semi-rigid finish
  • Long working times

Applications

  • Potting LED drivers
  • Encapsulating thermocouples
  • Thermal management of battery systems

834B – Meets UL 94V-0 standard, thermally conductive (TC of 0.8 W/m.K), 2:1 mix ratio, rigid, black, low exotherm, 1 hour working time. Cures at room temperature or higher.

834HTC – UL 746A certified, thermally conductive (TC of 0.94 W/m.K), 5:1 mix ratio, rigid, black, low exotherm, low CTE, 1.5 hour working time. Cures at room temperature or higher.

834FX – Meets UL 94V-0 standard, thermally conductive (TC of 0.6 W/m.K), 1:1 mix ratio, flexible, black, low exotherm, 2.5 hour working time. Cures at room temperature or higher.
