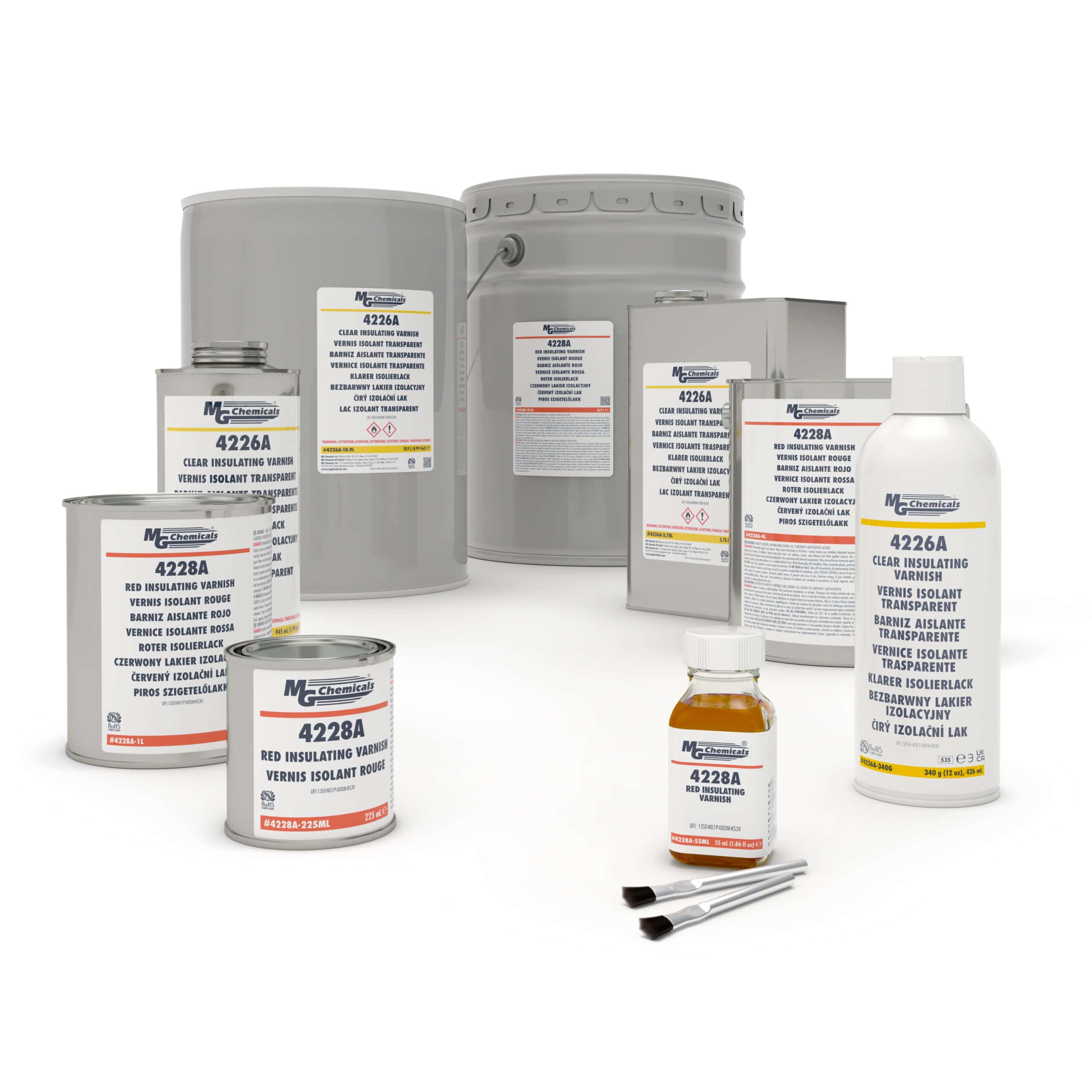

Insulation Coatings
MG Chemicals Insulation Coatings line is a unique line of varnish for electronics products intended to provide added insulation to high voltage parts such as transformer coils, motor windings and sheathing for wires. Characterized by high dielectric strength, these 1-part coatings adhere to a variety of substrates and offer exceptional protection against corrosion.
Features and Benefits
- Meets UL EIS standards. Class H insulation up to 180°C
- Excellent resistance to moisture and salt water
- Highly flexible
Applications
- Replacement for shrink wrap or electrical tape
- Arc and corona resistance for transformer coils and motor windings
- Insulation coatings for electrical generators

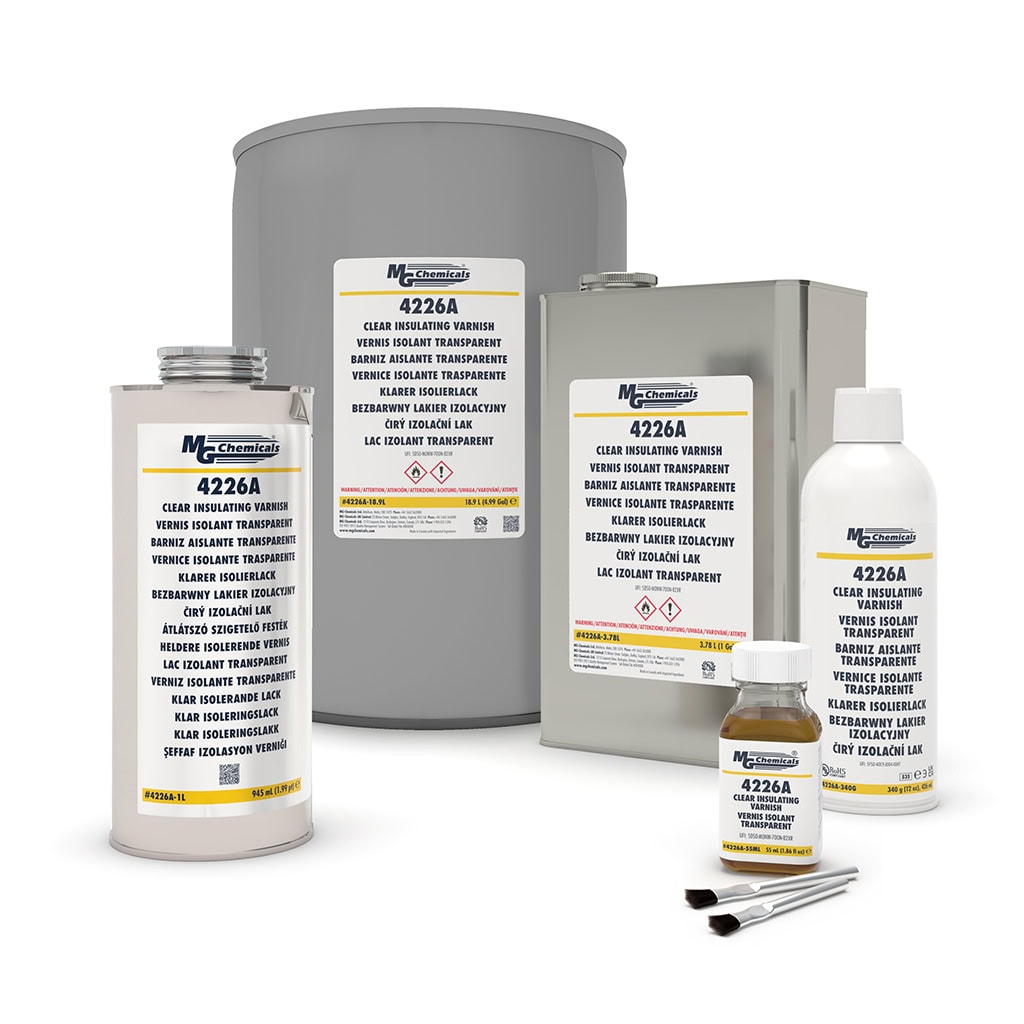

4226 – Clear Insulating Varnish – Clear, high gloss insulation coating with class H insulation
4228 – Red Insulating Varnish – Red, high gloss insulation coating. Direct cross to Glyptal 1201A
Category Data Sheets
Other Resources
Insulation Coatings FAQs
What Is Insulating Varnish?
Insulating varnishes are resins like epoxies or alkyds used to protect high voltage machines such as transformers, motors and generators from electrical failure. They are applied over electrical conductors to provide a layer of electrical isolation and prevent shorting. While very similar to conformal coatings, these systems have superior dielectric properties, which makes them a better choice for applications like insulating windings and coils.
How To Use Red Insulating Varnish
Red insulating varnish is an alkyd resin with exceptional dielectric strength, used to electrically isolate conductors in windings and coils. It is applied like a conventional paint, by dipping, brushing and spray. However, the sheer size of some motors renders these methods unfeasible. In such circumstances, vacuum impregnation is employed, where large vacuums transfer liquid resin from a holding tank to a coating chamber, essentially encapsulating exposed wires.
